BCF spinning machine
  • Description

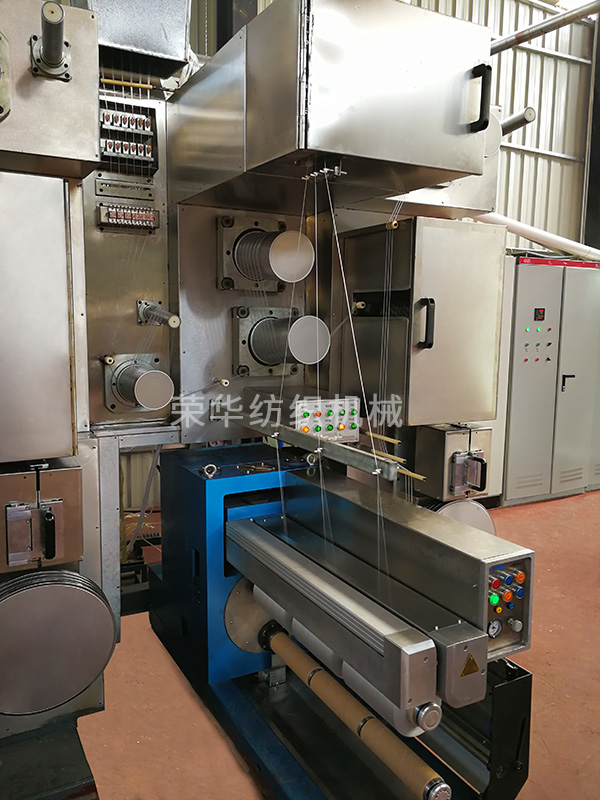

  • 丙纶BCF1.jpg


    Polypropylene Monochrome BCF Spinning Equipment: This equipment is mainly used to produce 1000D～3300D polypropylene expanded filament.


    Filament use: carpet, decorative cloth, handicrafts, aluminum alloy sealing strips, hair silk, etc.


    Equipment features: 1, low energy consumption. 2. The equipment runs stably with low failure rate and high output. 3. Easy operation and maintenance


    Equipment model: RH-BCF2, RH-BCF3


    PP BCF (monochrome and color) equipment


    PP BCF spinning machine is mainly used for spinning equipment from 1000 to 3300 denier polypropylene bulked continuous filament. Its raw material is polypropylene slice.


    PP BCF yarn mainly used for: carpets, industrial filter, and other fields.


      The basic parameters of the device:


      Finished fineness: 1000 to 3300 (Dan)


      Mechanical speed (maximum): 3000m / min


      Process 💟speed (maximum): 1🍌600m / min ~ 2000m / min


    Parts per tow Number: 2,3 Beam


    Equipment main components:


    1, the automatic feeder


    2, masterbatch injection machine


    3, screw extruder


    4, pre-filter (selected by the user)


    5 spinning boxes and components


    6, metering pumps and drive


    7, the side hair, air conditioning units and corridor


    8, oiling device, pre-network device


    9, drawing heat roller


    10, puffing, a cold drum


    11, winding rack


    12, the network device


    13, automatic winding machine


    14, electronic control system: with screw voltage control cabinet, spinning box temperature control cabinet, temperature-controlled cabinet drawing, drawing frequency counters, frequency counters and winding conventional electrical control system.
